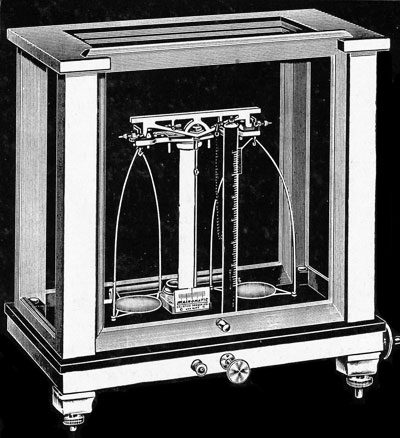

Analytical chainomatic balance No. 16

Graduated column and vernier, reading from 1/10 mg to 100 mg. No riders or small weights required

Capacity 200 grammes
Sensitiveness 1/20 mg with 100 gram load (1/10 mg with full load)
Beam 15 cm. (6”) long, sawed from hard rolled special aluminum alloy, having grat tensile strength and uniform density. Will sustain full load without flexure and maintain adjustment through varying temperature changes
Knife Edges Agate
Bearings Agate planes
Releasing Mechanism Fall away type, a simple and effective arrestment for beam and agate edges
Pans Nickel silver, 6 cm. (2 3/8”) diam
Bows Nickel silver, 10 1/4 cm wide x 20 cm. High inside. (4 1/8 x 8”)
Pan Arrest Independent arrest for pans with stop
Stand Durable black finish, lacquered brass base
Case Dimensions over all 16 1/2” long, 9 1/4 deep, 16 1/2” high. Polished mahogany, with glass sides and top, front sliding door counterpoised. No drawer. Mounted on black slate base. With vial levels and leveling screws
Measurements 30” x 16” x 25”
Net Weighing Domestic, 68 lb; Export, 70 lb
Code Word ANARAD
