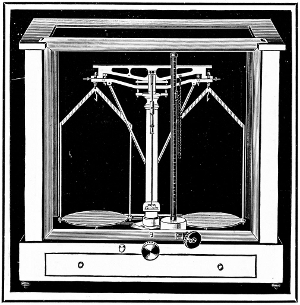

Heavy capacity Balances

Graduated column and vernier reading, 1/5 mg. To 100 mg. No small weights required. Bronze, 30 1/2 cm. (12”) long, great tensile strength and uniform density. Will sustain full load without flexure and maintain adjustment through varying temperature changes.

Capacity 500 grams
Sensitiveness 1/5 mg.
Bearings Agate.
Releasing Mechanism Agate plances. All edges are entirely freed from the bearings, when the balance is arrested.
Rider Rod Fall away type, and effective arrestment for beam and bearings.
Stand Single column construction.
Pans Alumium, 15 cm. (6”) diam.
Bows Aluminum, 16 1/2 cm. Wide x 30 1/2 cm high inside (6 1/2 x 12”)
Pan Arrest Independent arrest for pans with stop.
Case Dimensions over all 25” long, 12 deep, 22” high, Polished mahogany, with glass sides and top, front sliding door counterpoised, rear door removable. With level and leveling screws.
Code Word CHATE
Four Sizes 1/2 kg, 1kg, 2kg, 5kg
